iQ PROTECT Safe
Fall-through-proof, floor-to-ceiling glass walls
The iQ PROTECT Safe wall system is a fully glazed, fall-proof wall solution, designed for installation around an atrium or stairwell. The sturdy construction provides a safe wall that prevents people from falling through the glass. The wall is executed in the minimalist design of the QbiQ profile and has no vertical posts.
From the atrium, the iQ PROTECT Safe provides optimal daylight access to the floors.
iQ PROTECT Safe |
|
| Description | Fall-through-proof, floor-to-ceiling glass walls. |
| Certification | Cradle to Cradle Silver. |
| Partition Thickness | 1.10" (28 mm). |
| Section panels | Glass. |
| Glazing | 20 mm (10.10.2 glass) |
| Glass sections modulation | Project specific up to 35.43" (900mm). |
| Section Joins | Fully transparent hairline joint. |
| Head Track | Smooth, aluminium, 1.3" (33 mm) high. |
| Floor Track | Smooth, aluminium, 1.3" (33 mm) high. |
| Doors | n/a |
| Color | RAL color gloss level 30% or 70%. |

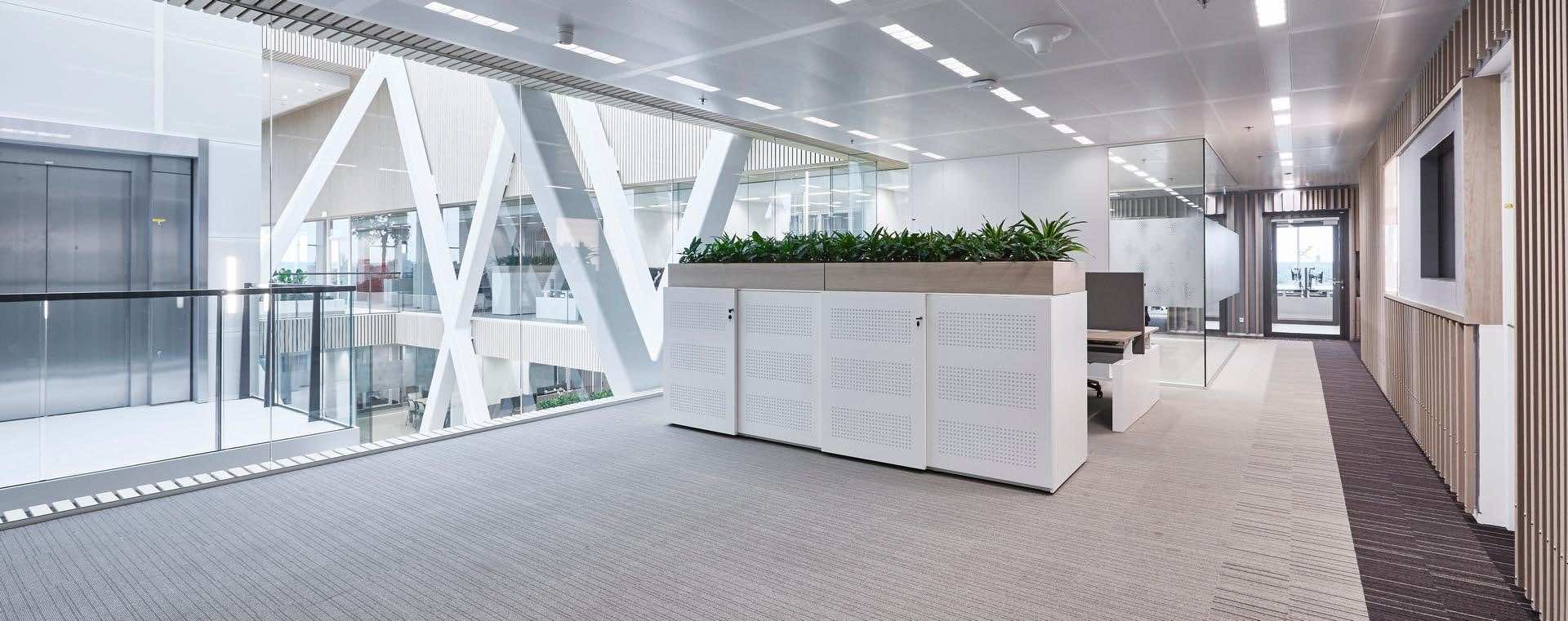

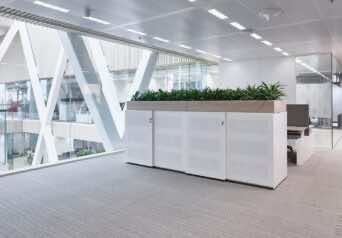

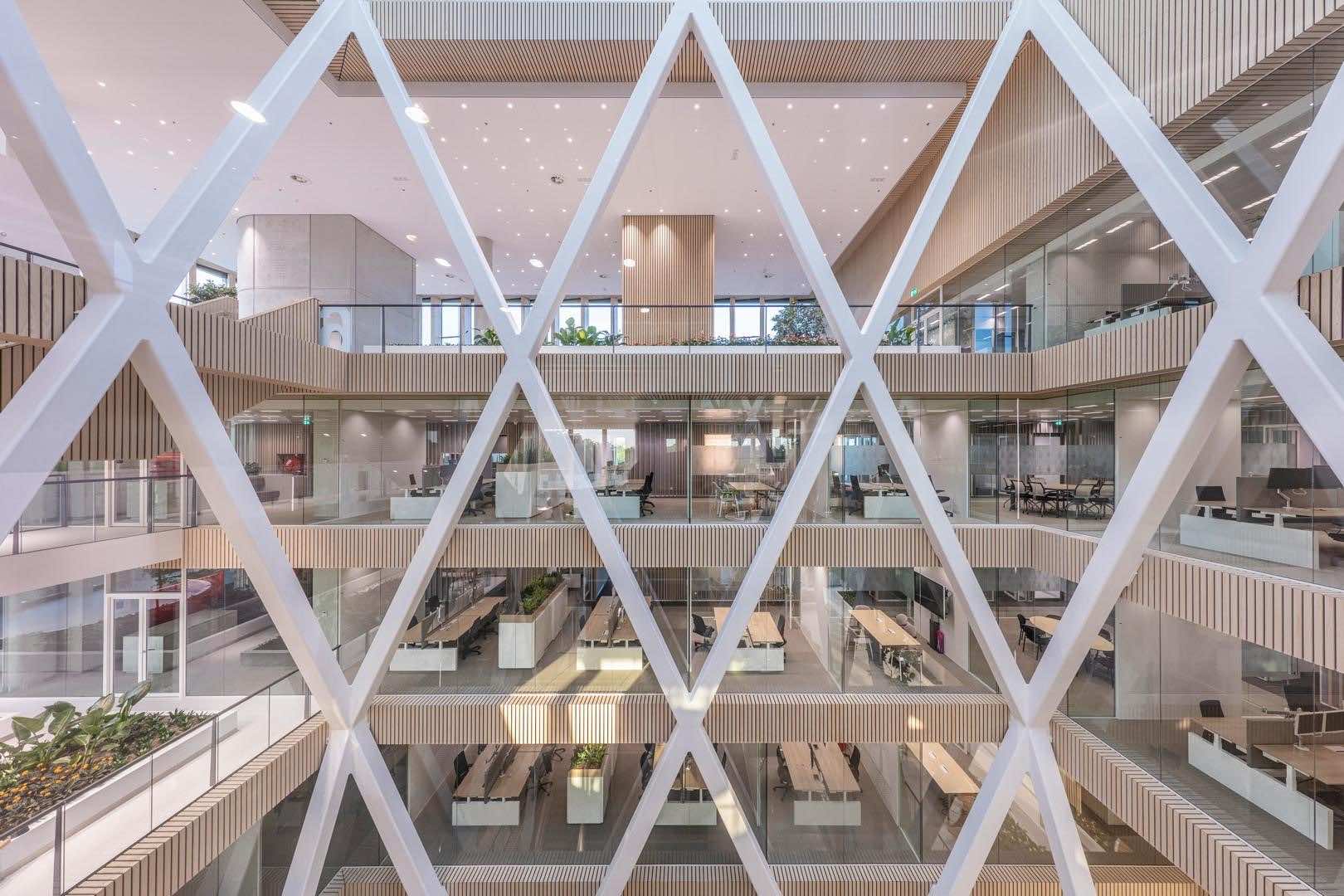

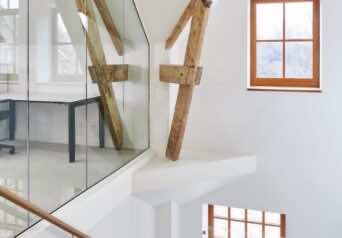

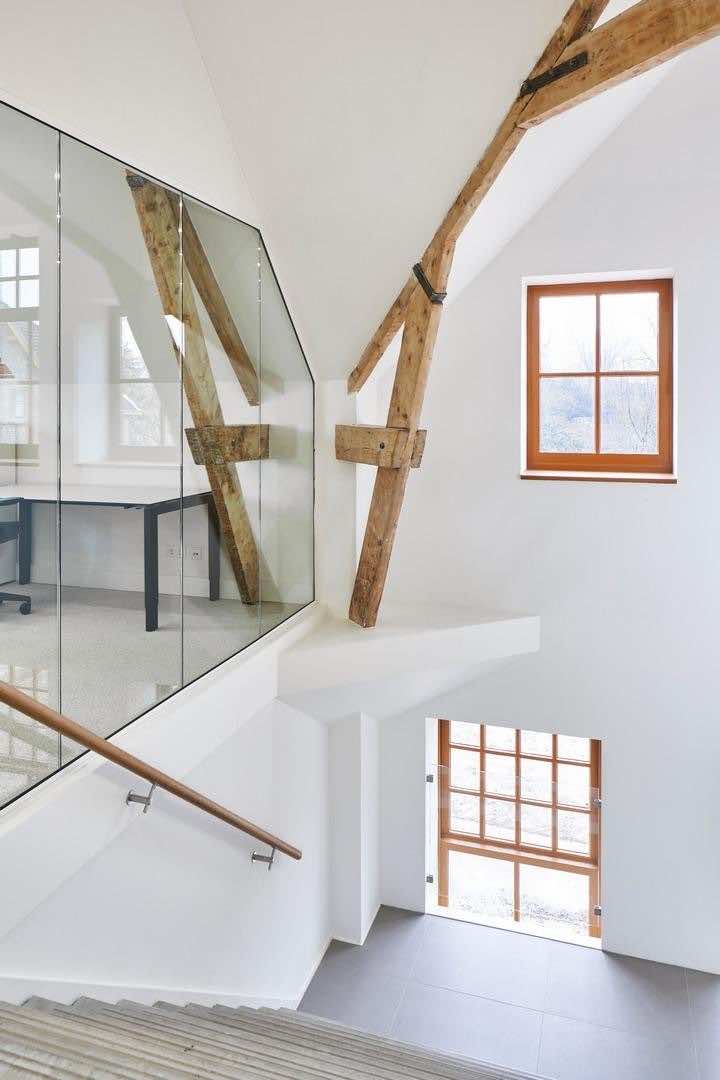

| Reference photos | |
|
