iQ PRO Melamine

Gesloten wand met melamine panelen



iQ PRO Melamine is een dubbelwandig gesloten wandsysteem met melamine panelen, dat beschikt over hoge geluidswaarden. De iQ PRO Melamine is uitermate geschikt voor kamerscheidende wanden waar hoge eisen worden gesteld aan geluidisolatie.



De aluminium profielen zijn slechts 33 mm rondom in aanzicht. Leverbaar in wanddiktes van 78, 100 en 125 mm.



In basis wordt iQ PRO Melamine uitgevoerd met aan beide zijde 12,5 mm gipsplaat aan de binnenzijde en 12,5 mm melamine panelen aan de buitenzijde. De melamine panelen kunnen worden bekleed met vele kleuren, patronen en texturen. De panelen kunnen met een 0-voeg of T-voeg tegen elkaar worden geplaatst.



De iQ PRO Melamine laat zich uitstekend combineren met transparante wandsystemen als iQ Single, iQ Structural of iQ PRO Glass. En ook met dichte panelen uit de iQ PRO serie zoals iQ PRO Steel en iQ PRO Stud.









iQ PRO Melamine

Beschrijving Gesloten wand met melamine panelen.
Wanddikte 78, 100, 125 mm.
Wandelementen Melamine.
Modulering 900mm, project specifieke afmetingen mogelijk.
Moduulkoppeling 0-voeg of 31 mm T-voeg.
Plafondprofiel Vlak, aluminium, hoogte 33 mm, eventueel met schilderij-ophangsysteem.
Plintprofiel Vlak, aluminium, hoogte 33 mm.
Deurkozijnen Aluminium blokkozijn enkel en/of dubbele aanslag.
Deuren • Aluminium kaderdeuren voorzien van enkel of dubbel akoestisch gelaagd glas en met enkele of dubbele aanslag.
• Flush deuren.
• Gesloten stalen deuren.
• Houten deuren met een HPL of fineer afwerking.
• Hardglazen deuren.
Kleuren • Aluminium delen: RAL kleur glansgraad 30% of 70%.
• Melamine panelen: in kleur naar keuze.
Geluidswaarden Tot Rw 45 dB.

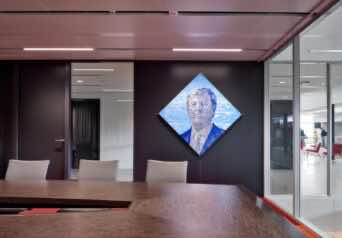

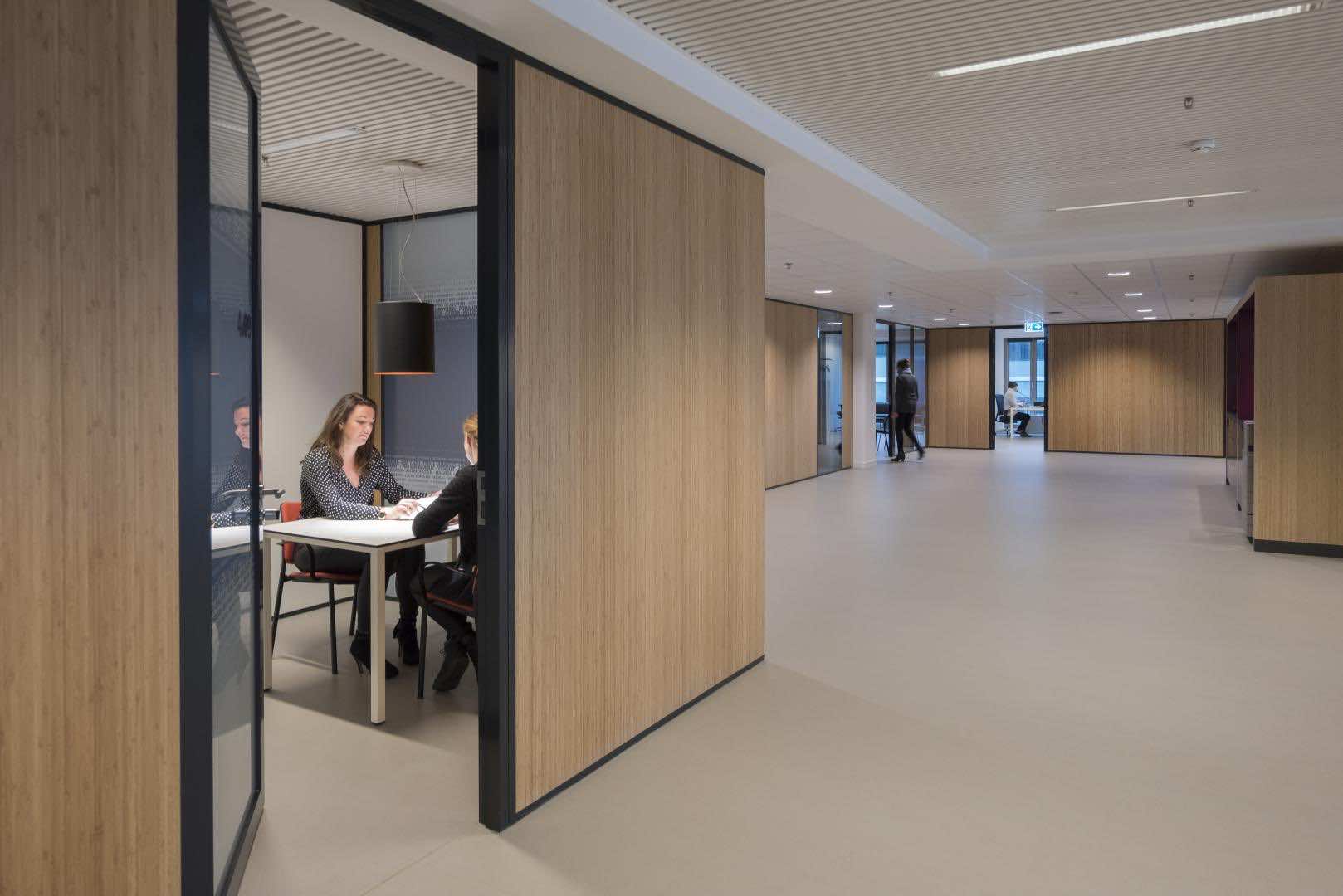

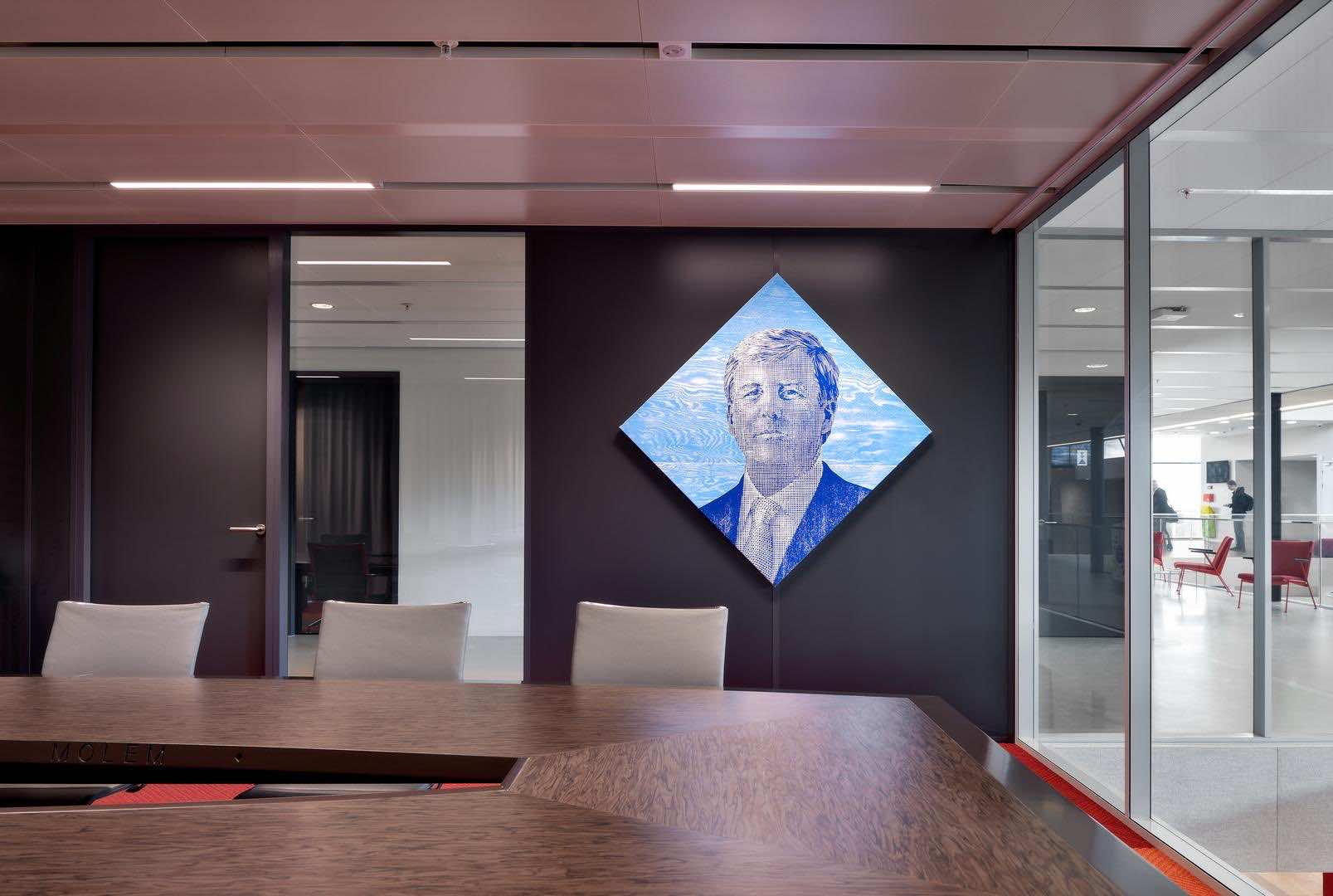

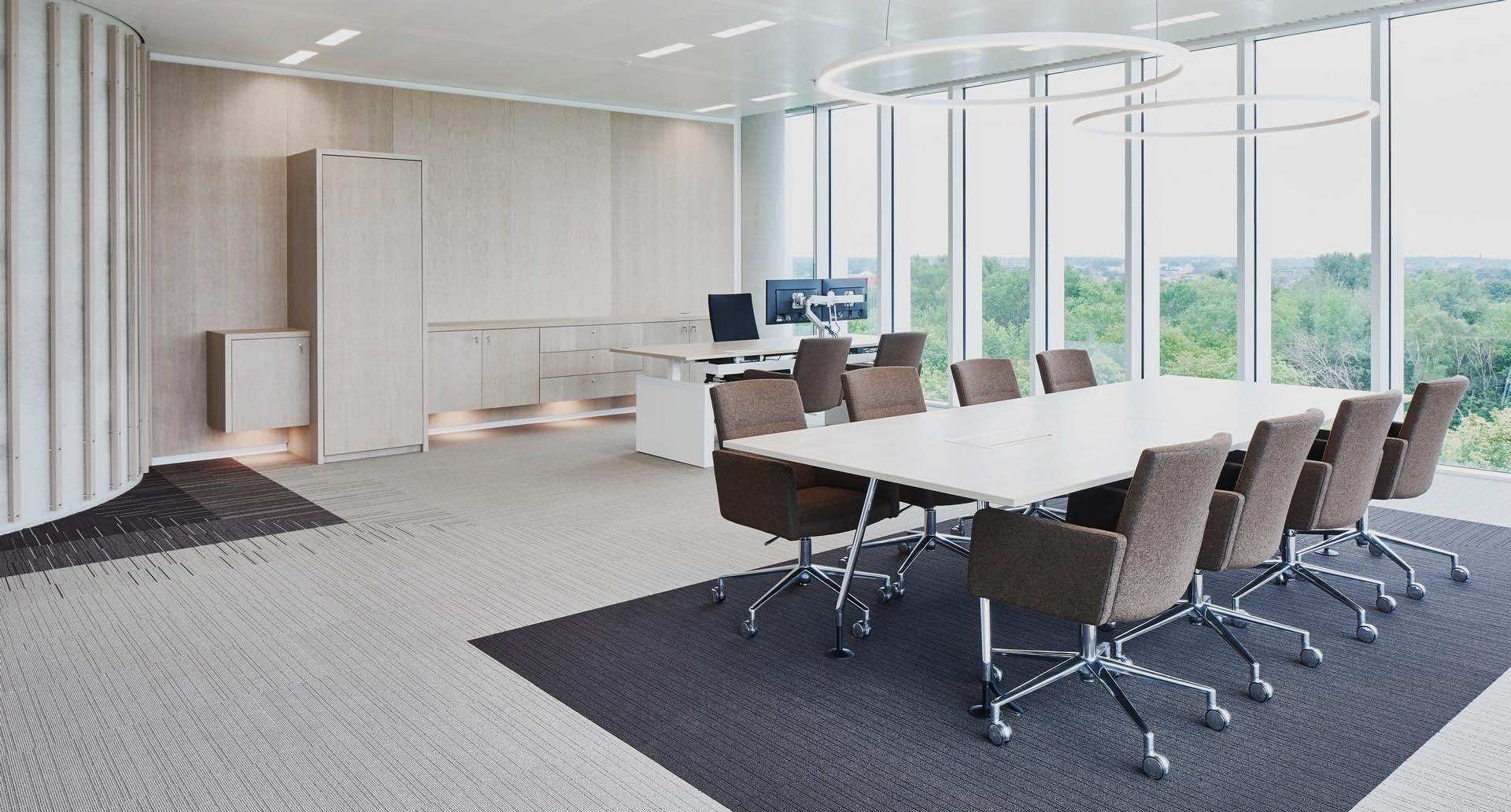

Referentie foto's
