iQ PRO Steel

Gesloten wand met stalen panelen

De iQ PRO Steel is een dubbelwandig gesloten wandsysteem met stalen panelen en hoge geluidswaarden. De aluminium profielen zijn slechts 33 mm rondom in aanzicht. Leverbaar in wanddiktes van 78, 100 en 125 mm.



In basis wordt de iQ PRO Steel uitgevoerd met aan weerszijde dubbele gipsplaten en afgewerkt met  staalpanelen aan de buitenzijde. De staalpanelen kunnen in elke gewenste RAL kleur worden gespoten.



iQ PRO Steel laat zich uitstekend combineren met transparante wandsystemen als iQ Single, iQ Structural of iQ PRO Glass. En ook met dichte panelenwanden uit de iQ PRO serie zoals iQ PRO Melamine en iQ PRO Stud.





iQ PRO Steel

Beschrijving Gesloten wand met stalen panelen.
Certificering Cradle to Cradle Silver.
Wanddikte 78, 100 en 125 mm.
Wandelementen staal.
Modulering Projectspecifiek, tot maximaal 1200 mm.
Moduulkoppeling 0-voeg.
Plafondprofiel Vlak, aluminium, hoogte 33 mm, eventueel met schilderij-ophangsysteem.
Plintprofiel Vlak, aluminium, hoogte 33 mm.
Deurkozijnen Aluminium blokkozijn met enkel en/of dubbele aanslag.
Deuren • Aluminium kaderdeuren voorzien van enkel of dubbel akoestisch gelaagd glas en met enkele of dubbele aanslag
• Flush deuren.
• Gesloten stalen deuren.
• Houten deuren met een HPL of fineer afwerking.
• Hardglazen deuren.
Kleuren RAL kleur glansgraad 30% of 70%.
Geluidsisolatie tot Rw 60 dB

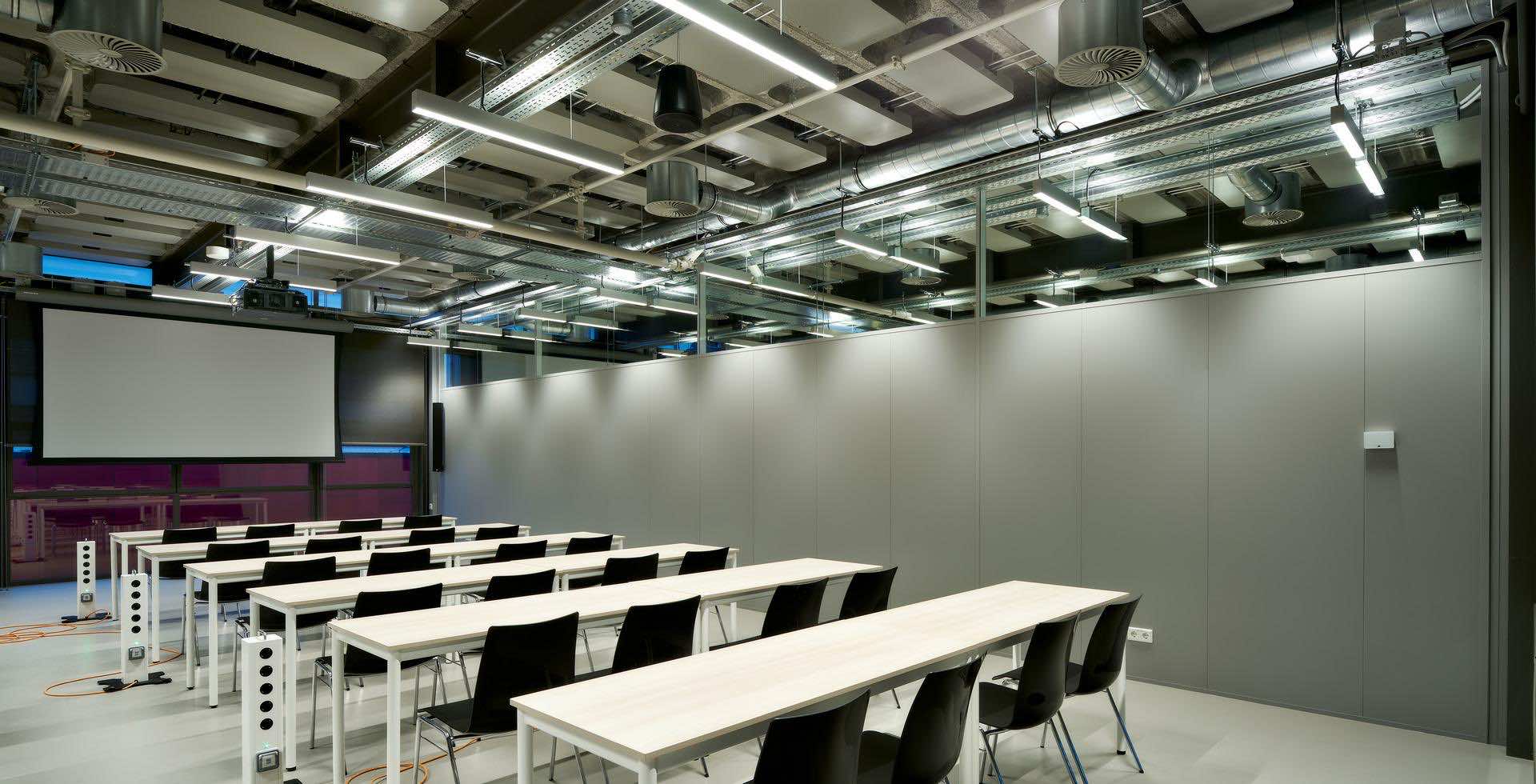

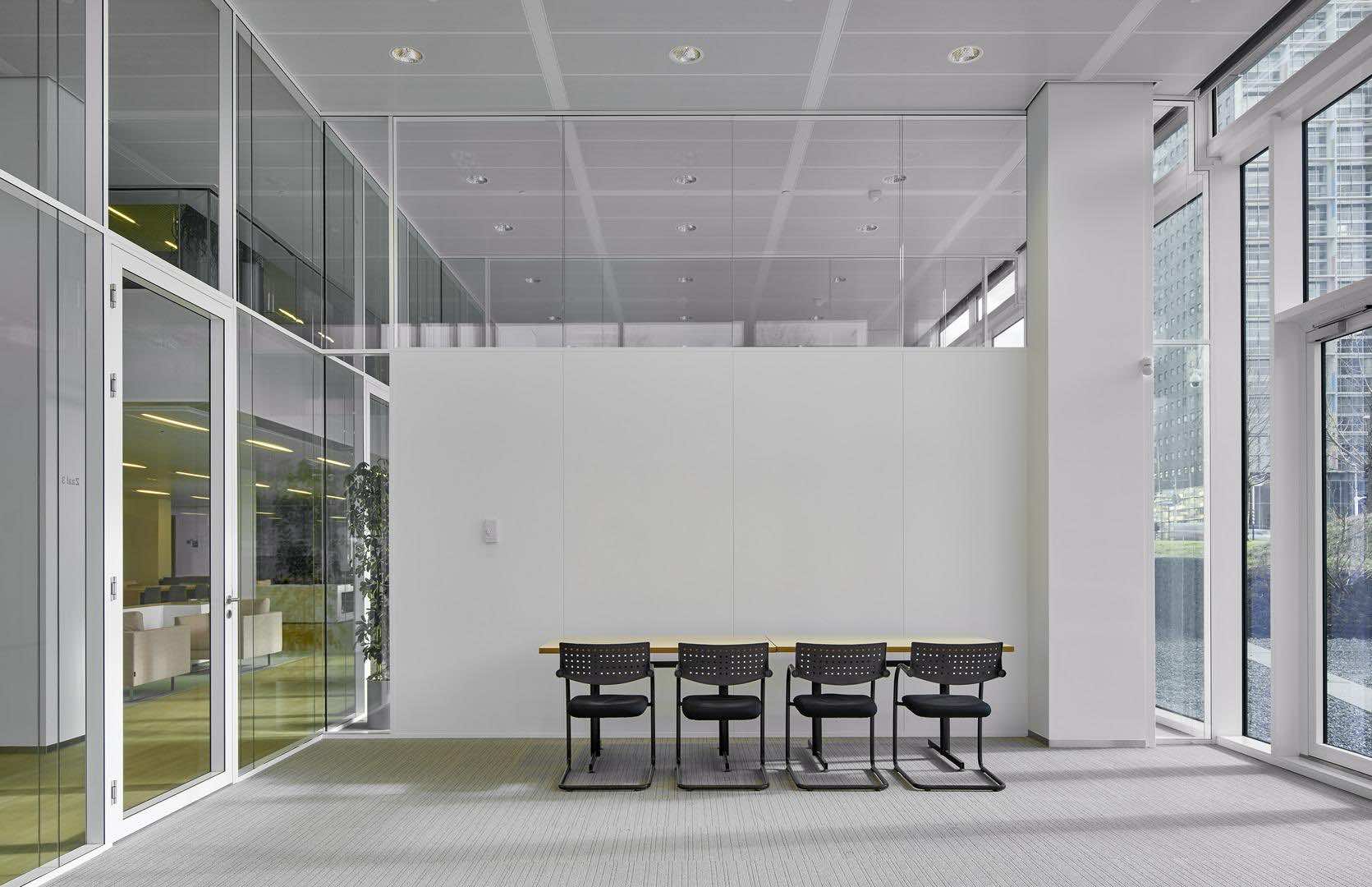

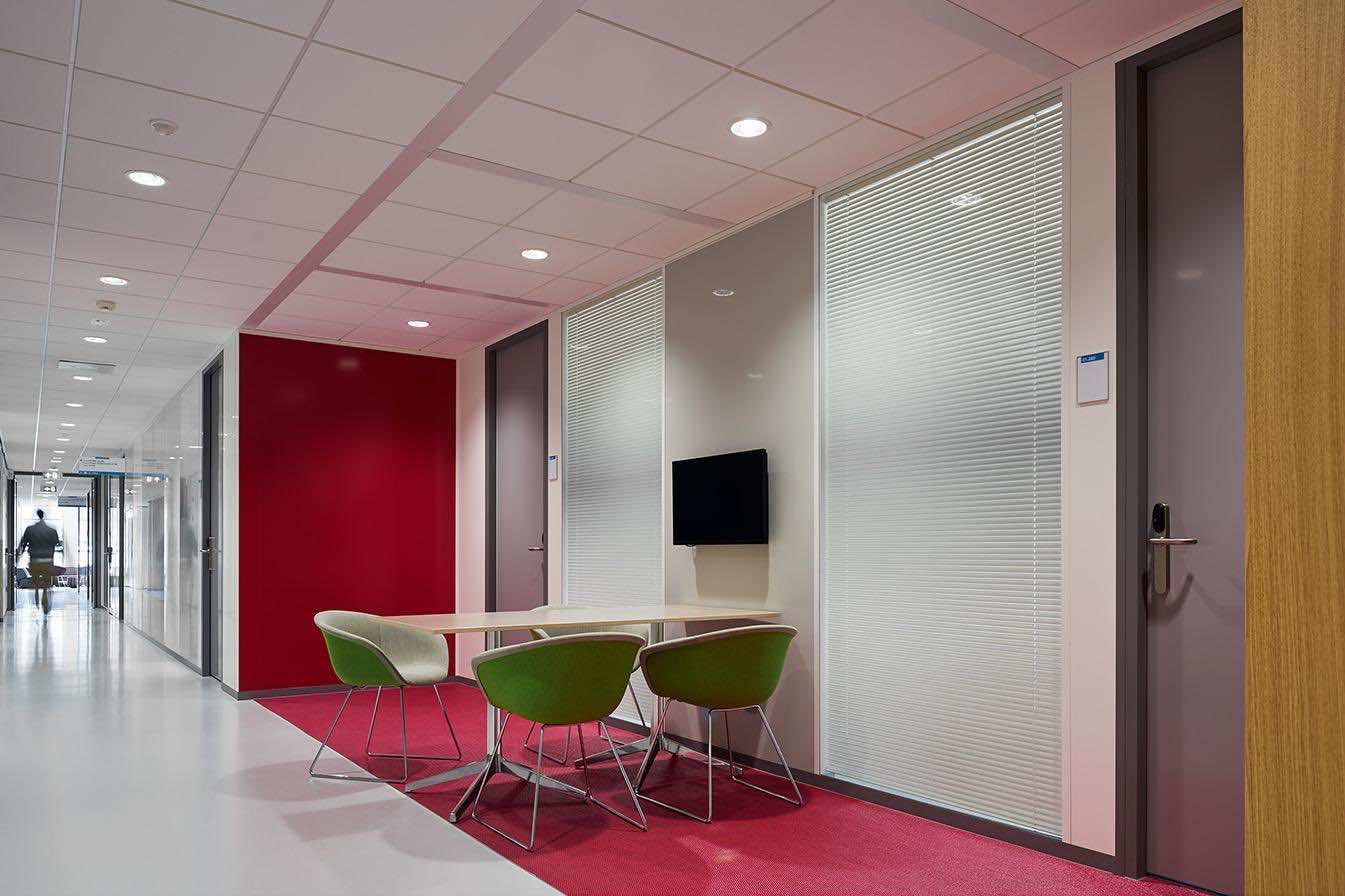

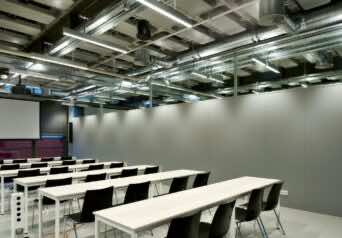

Referentie fotos
