Producten ⁄ iQ Solo



iQ Solo

Gesloten systeemwand van stalen cassettes met circulair isolatiemateriaal

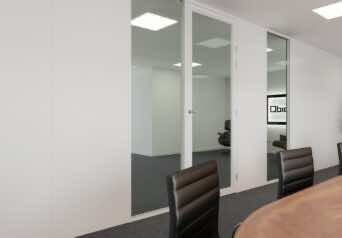

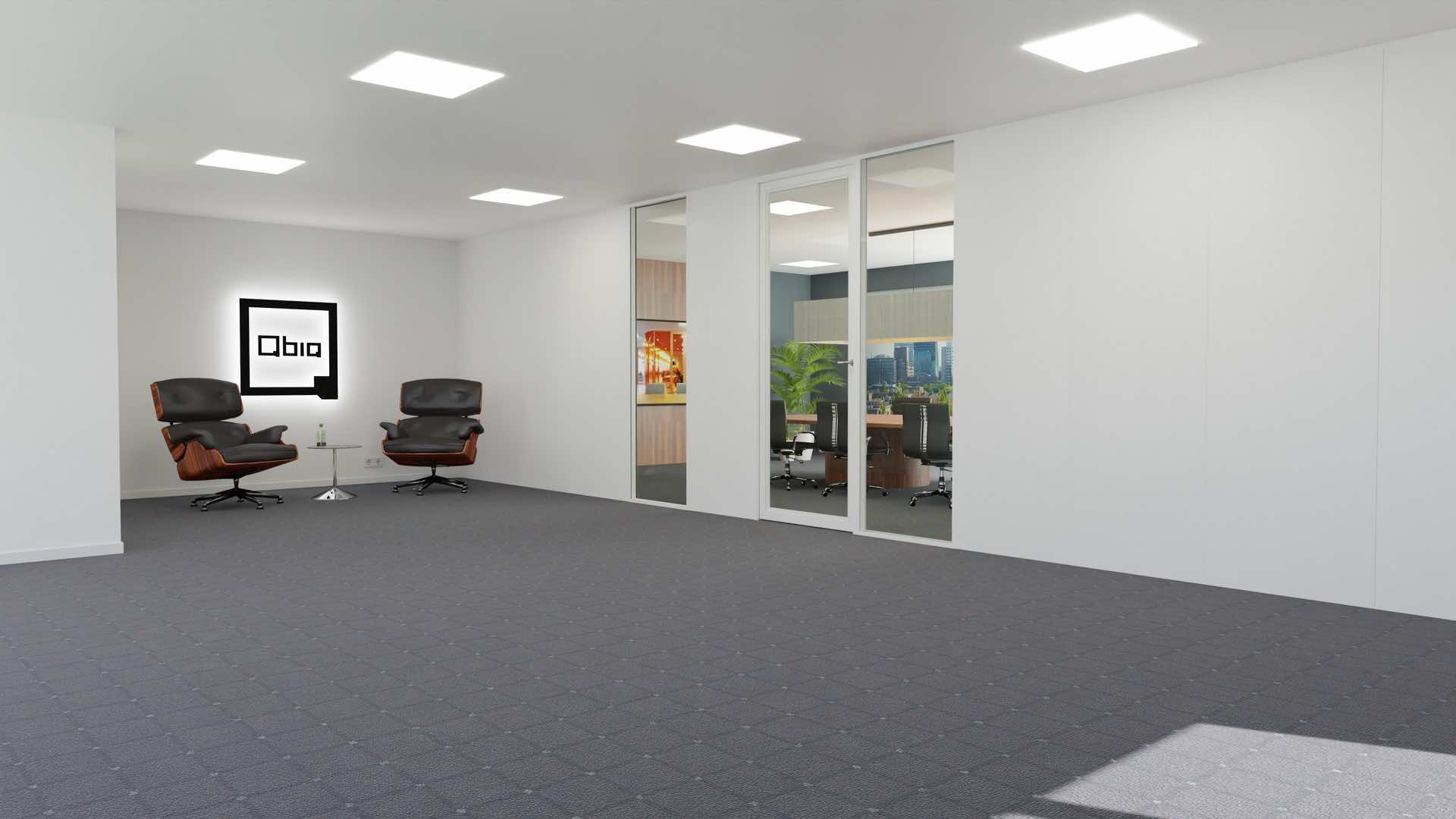

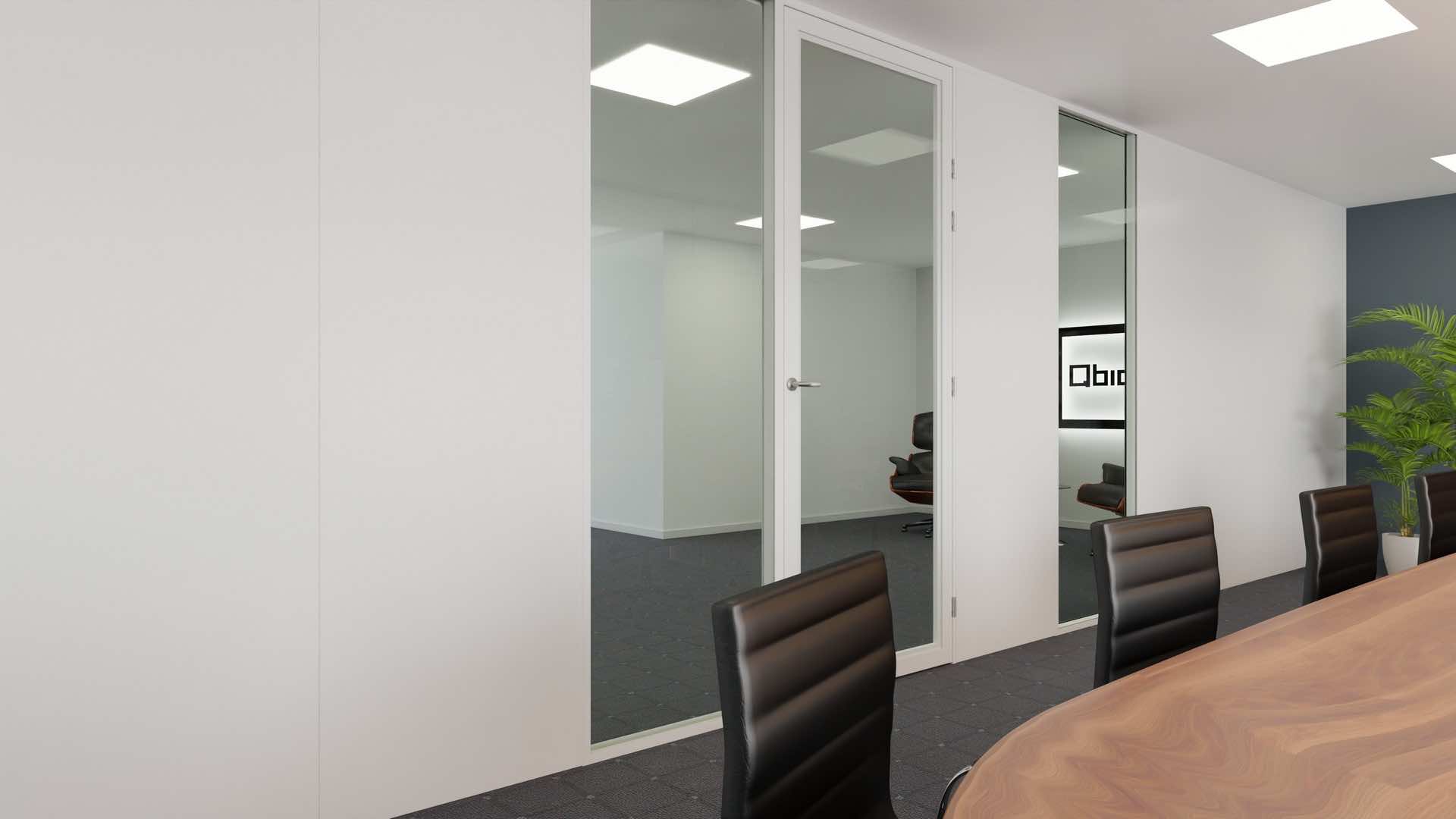

iQ Solo is een Cradle to Cradle Silver gecertificeerde systeemwand. Het is een monoblock systeem van stalen panelen, gevuld met een circulair duurzaam isolatiemateriaal. De propositie van iQ Solo is simpel maar doeltreffend. Er ontstaat direct en stofvrij een keurig afgewerkte, gesloten systeemwand met een dikte van 78mm. De wand bestaat uit op maat gemaakte cassettes van 1,5mm dik plaatstaal. De cassettes sluiten met een minimale voeg op elkaar aan, zonder stijlen of strips. De cassettes worden voorzien van een C2C gecertificeerde poedercoating in elke gewenste kleur.

iQ Solo combineert perfect met het iQ Single wandconcept met enkelwandige glaspuien; het akoestisch gelaagde (66.A2) glas sluit in het hart van de cassette direct aan op de gesloten wand. Bij verhoogde eisen op het gebied van akoestiek, combineert u de iQ Solo met het dubbelwandige iQ Structural wandsysteem met een dikte van 78mm.





iQ Solo
Beschrijving Gesloten systeemwand van stalen cassettes met circulair isolatiemateriaal
Certificering Cradle to Cradle Silver
Wanddikte 78mm
Modulering Glas 900mm. project specifieke afmetingen mogelijk
Modulering beplating 900mm. project specifieke afmetingen mogelijk
Moduulkoppeling 0-voeg
Isolatie circulair isolatiemateriaal (naar eigen keuze)
Plintprofiel geen
Plafondprofiel 33mm aluminium
Wandpanelen cassetten vervaardigd van 1,5 plaatstaal
Beglazing Enkel of dubbelglas, evt. voorzien van akoestische demping, 10 tot 12,76mm dikte

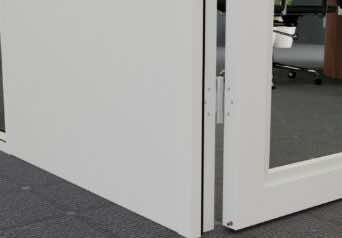

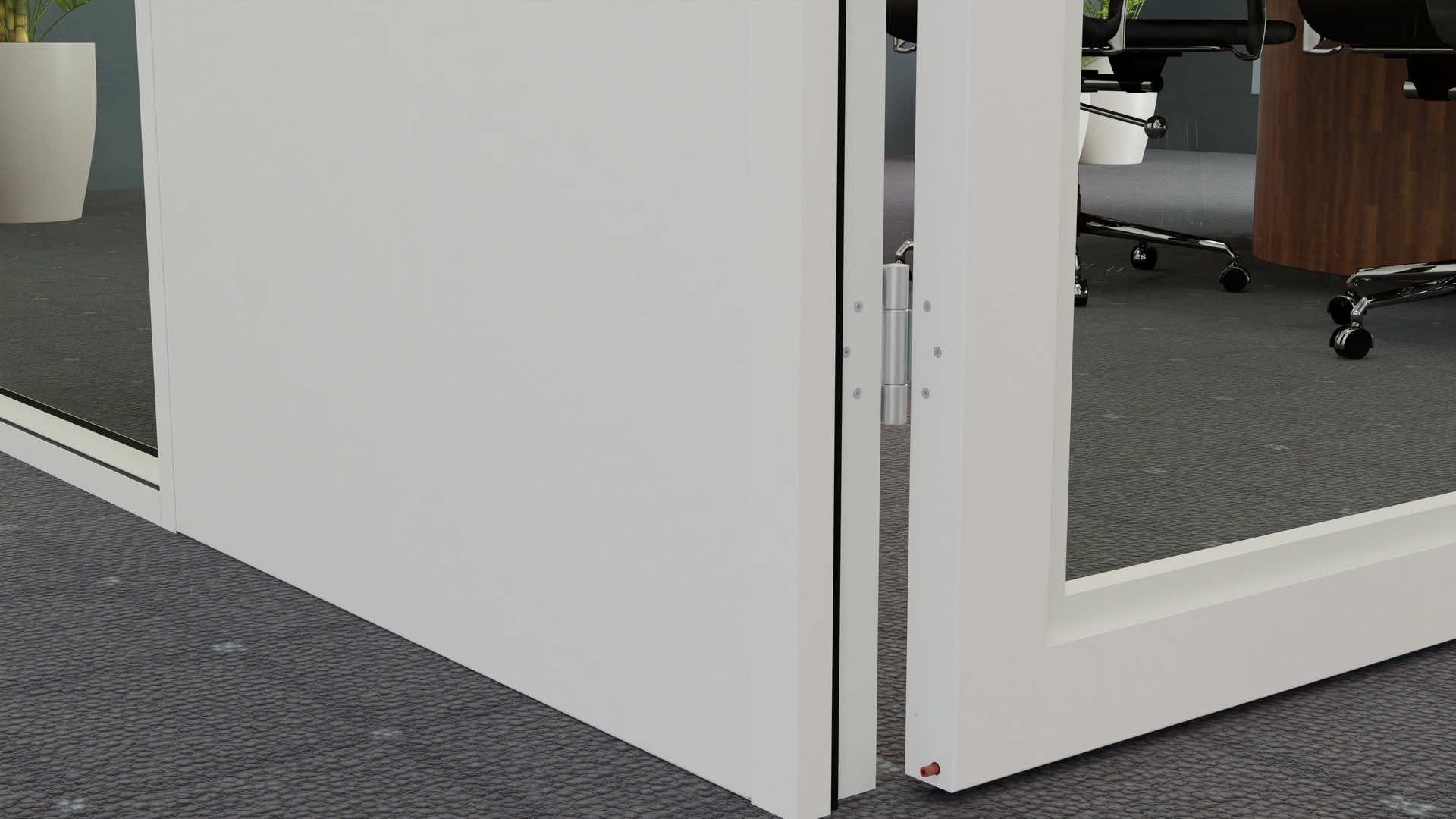

Deurkozijnen aluminium blokkozijn met enkele en/of dubbele aanslag, zoals de DK74
Deuren • aluminium kaderdeuren voorzien van enkel of dubbel akoestisch gelaagd glas en met enkele of dubbele aanslag
• gesloten stalen deuren
• houten deuren met een HPL of fineer afwerking
• hardglazen deuren
