iQ PROTECT Smoke Sa

Rookwerende glaswanden met Sa classificatie

Vol transparante glaswanden die voldoen aan de nieuwste strenge eisen die worden gesteld aan de rookwerendheid van wanden en deuren in utiliteitsgebouwen. iQ PROTECT Smoke Sa wanden hebben rondom een profiel van slechts 33mm in aanzicht. Verticale stijlen zijn in rookwerende systeemwanden niet vereist waardoor een hoge mate van transparantie wordt verkregen.



iQ PROTECT Smoke Sa kan worden uitgevoerd in verschillende glasdiktes. Door het toepassen van dikker glas, eventueel voorzien van een akoestische folie tussen het glas, worden de geluidsisolatiewaarden aanzienlijk verhoogd. Daar waar extra hoge glaswanden worden gevraagd, zorgt dikker glas voor extra stabiliteit en sterkte van de rookwerende glaswand.



In het Besluit Bouwwerken Leefomgeving (BBL) worden strenge eisen gesteld aan de rookwerendheid van compartimenten waarbij voor zowel koude als warme rook separate eisen gelden. Afhankelijk van het type gebouw en gebruik wordt bepaald welke classificatie is vereist.



iQ PROTECT Smoke Sa  glaswanden zijn geschikt om te plaatsen daar waar een Sa Classificatie is vereist. Dit zijn ‘niet-slaapgebouwen’ zoals bijvoorbeeld kantoren. Hier gaat men uit van rook met de temperatuur van de omgeving, ofwel “koude rook”.



Door de modulaire opbouw van de QbiQ product range, kan iQ PROTECT Smoke Sa feilloos gecombineerd worden met dubbelglas wandsystemen zoals iQ PRO en iQ Structural uit de LIBERTY range. Zodoende kan een dubbelglas systeemwand worden gecreëerd met hoge geluidswaarden, bestaande uit akoestisch gelaagd glas aan de ene zijde en Sa glas aan de andere zijde.





iQ PROTECT Smoke Sa

Beschrijving Rookwerende glaswanden met Sa classificatie.
Certificering Cradle to Cradle Silver.
Classificering Sa
Wanddikte 20, 24 en 28 mm.
Wandelementen Glas.
Beglazing Rookwerend gelamineerd enkel glas, dikte 12,76 tot 20,76 mm evt. voorzien dan akoestische demping.
Modulering 900mm, project specifieke afmetingen mogelijk.
Moduulkoppeling Transparante 0-voeg.
Plafondprofiel vlak, aluminium, hoogte 33 mm.
Plintprofiel vlak, aluminium, hoogte 33 mm.
Deurkozijnen Aluminium blokkozijn DK58, DK74D.
Deuren Voorzien van valdorpel.
• Aluminium kaderdeur KDEC, KDD57D.
• HPL deuren.
Kleur RAL kleur glansgraad 30% of 70%.

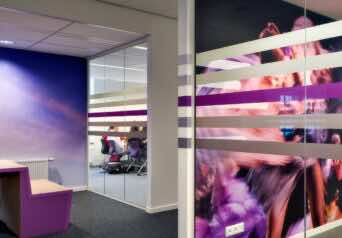

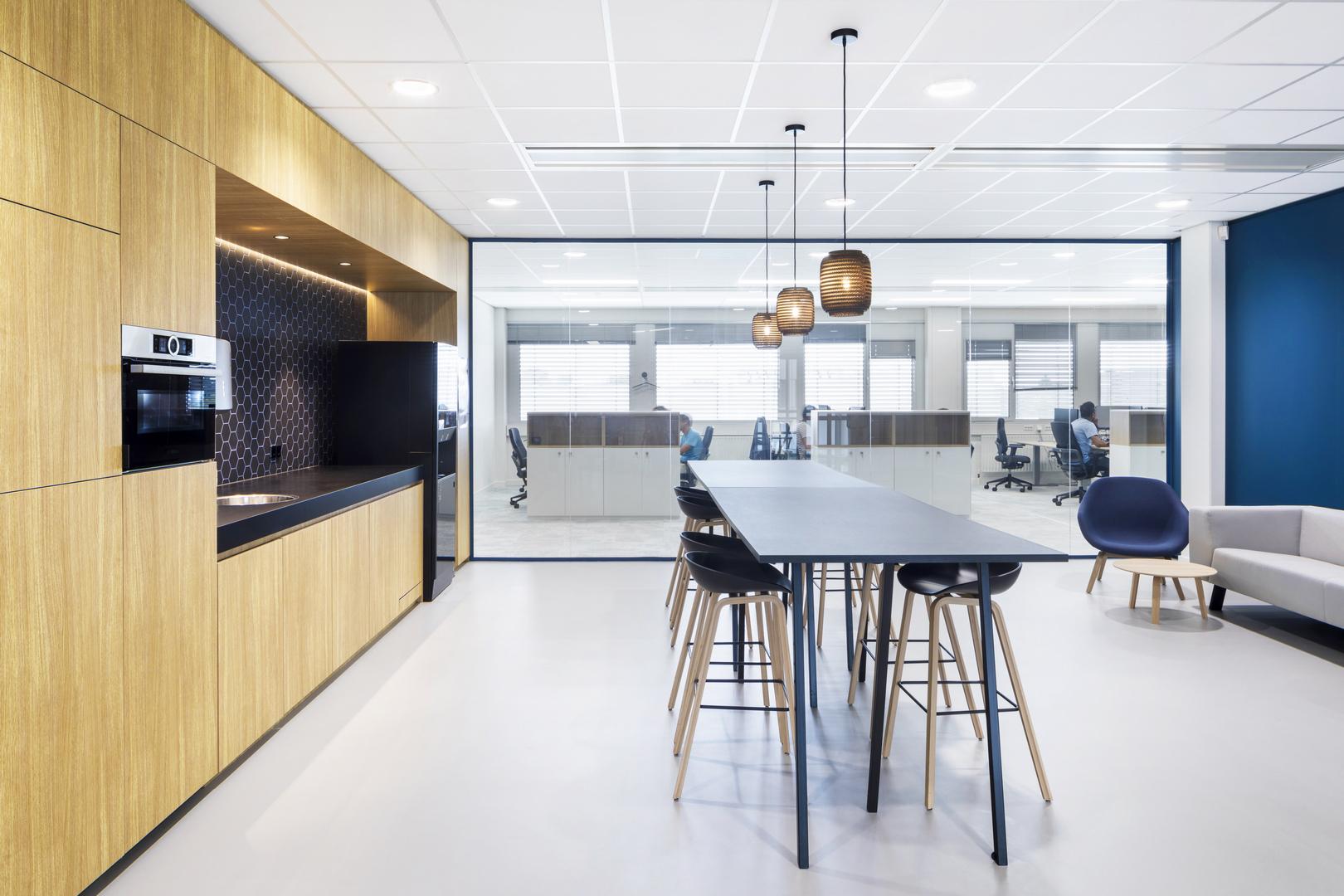

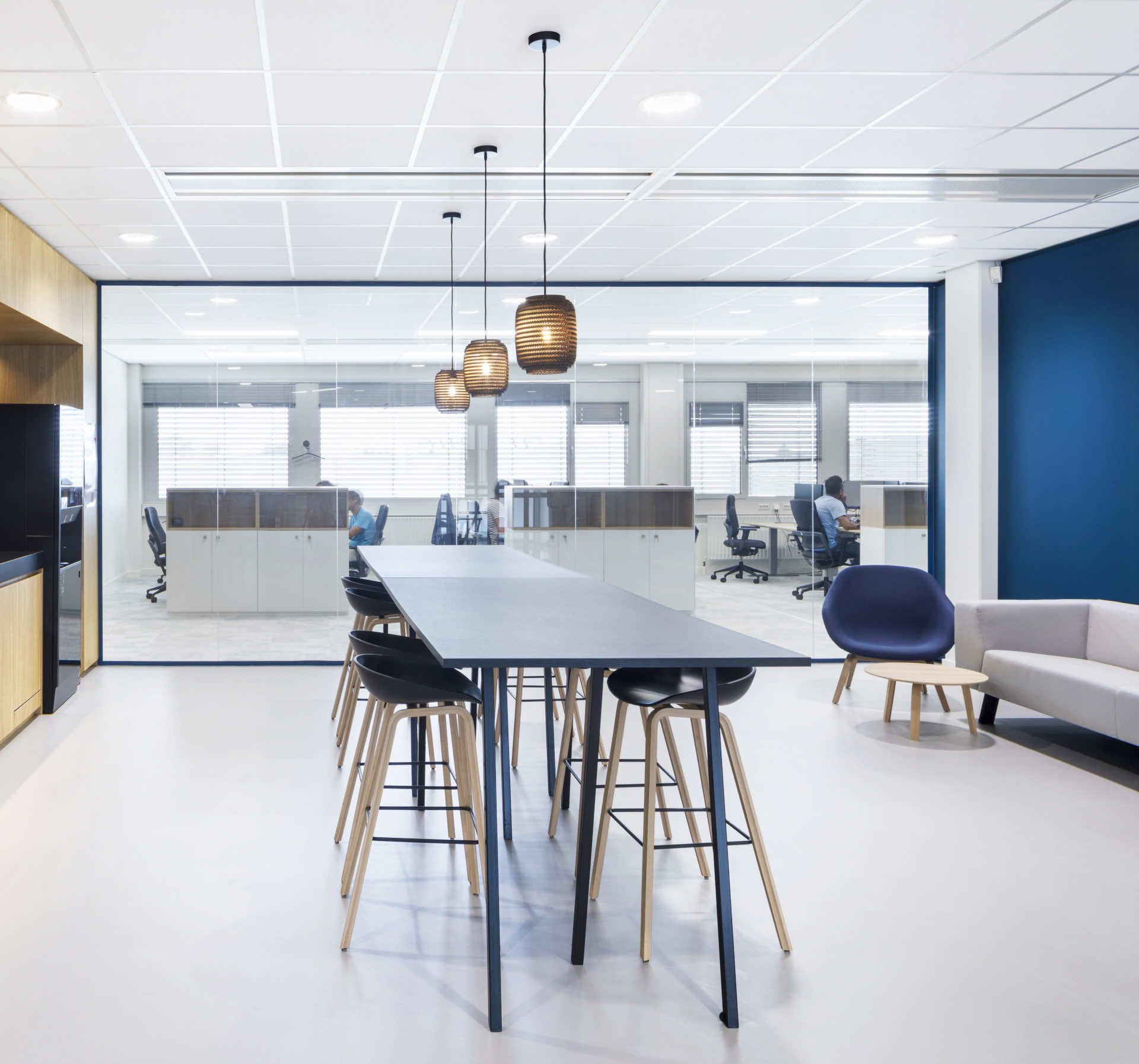

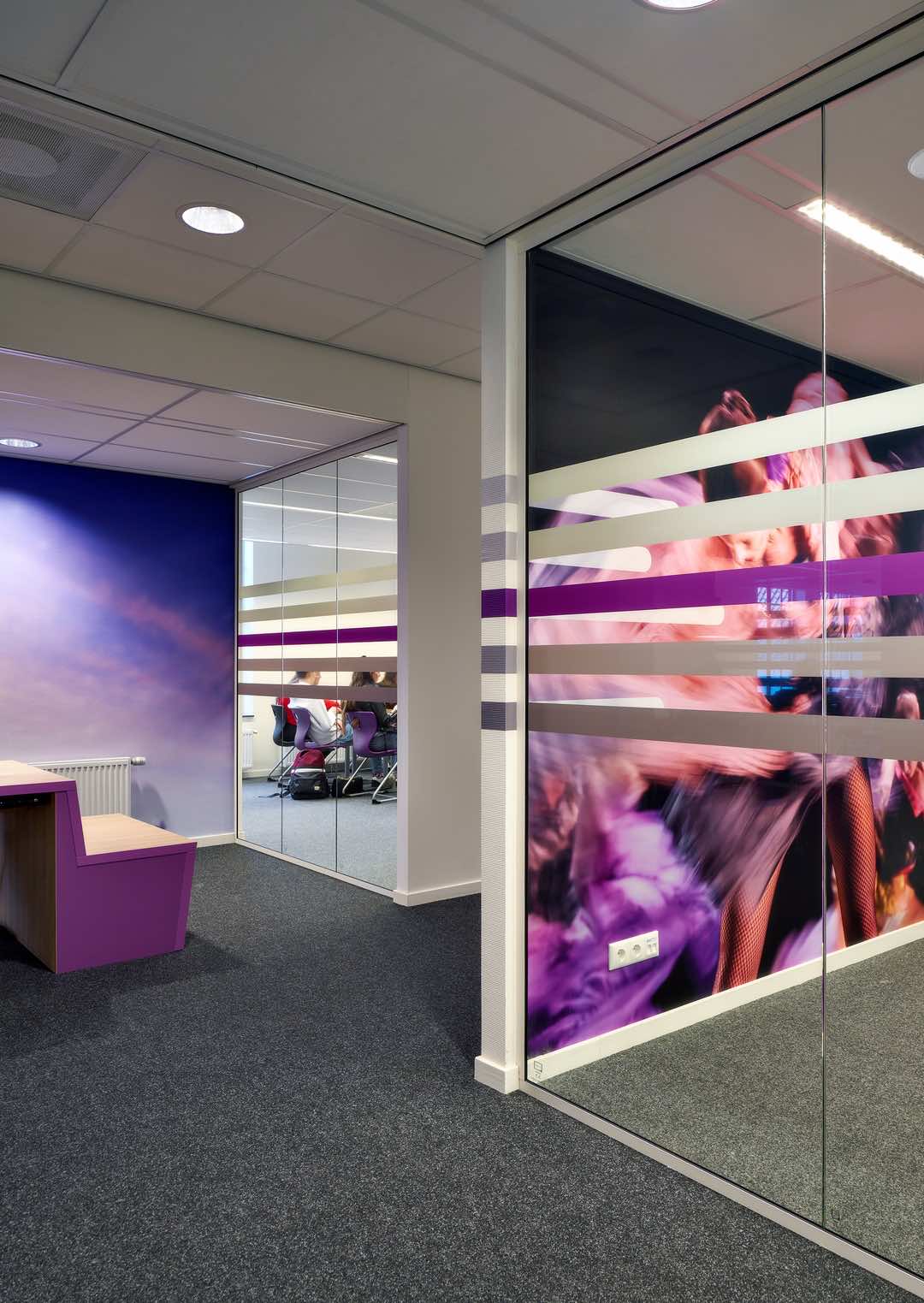

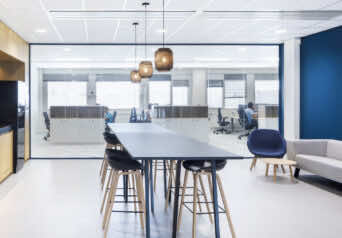

Referentie foto's
