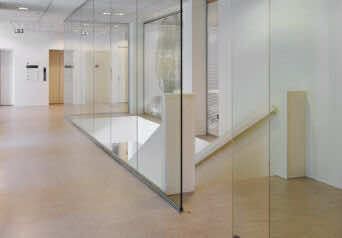

Doorvalveilig voor vides en balustrades

Het IQ-SINGLE Safe wandsysteem is een volglazen, doorvalveilige wandoplossing welke is ontworpen voor plaatsing rond vides en balustrades. De extra stevige constructie zorgt voor een veilige wand die voorkomt dat personen door het glas kunnen vallen. De wand is uitgevoerd in een minimalistisch ontwerp zonder verticale stijlen wordt eindelijk gekoppeld aan doorvalveilige en hoge akoestische eigenschappen.





iQ-SINGLE Safe

wanddikte 28mm
modulering glas projectspecifiek tot 900mm
modulering beplating -
moduulkoppeling voltransparantie 0-voeg
isolatie -
plintprofiel aluminium profiel, hoog 33 mm, voorzien van akoestisch band en geluidswerende detail in de aansluiting op de vloer.
plafondprofiel aluminium profiel, hoog 33 mm, voorzien van akoestisch band voor een geluidsdichte afsluiting tegen het plafond.
wandbeplating gelaagde glaselementen 20,76mm eventueel voorzien van akoestiech demping
deurkozijnen -
deuren -
scharnieren/paumelles -
raamkozijnen -
beglazing 10.10.a.2 of 10.10.2
